XD015H120BM1S3芯達茂國產IBGT +FRD單管 15A 1200V TO-247-3L
15A 1200V TO-247-3L
24小時全國服務熱線：18902855590
24小時全國服務熱線：18902855590
Trench Field-Stop Technology IGBTFeatures
◼ 1200V, 15A
◼ VCE(sat)(typ.) =1.8V@VGE=15V, IC=15A
◼ Low Switching Losses
◼ VCE(sat) with Positive Temperature Coefficient
◼ Pb-free Lead Plating; RoHS CompliantApplications
◼ Frequency Converters
◼ Uninterrupted Power Supply
◼ Air Conditioning
◼ Motor Drives

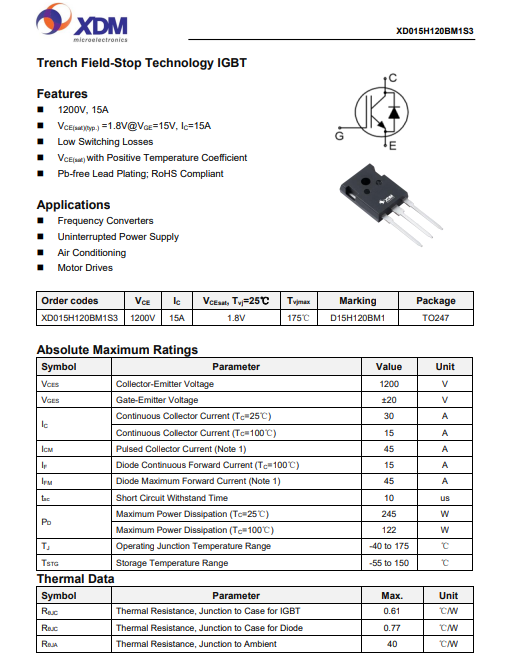

部分資料如下：
